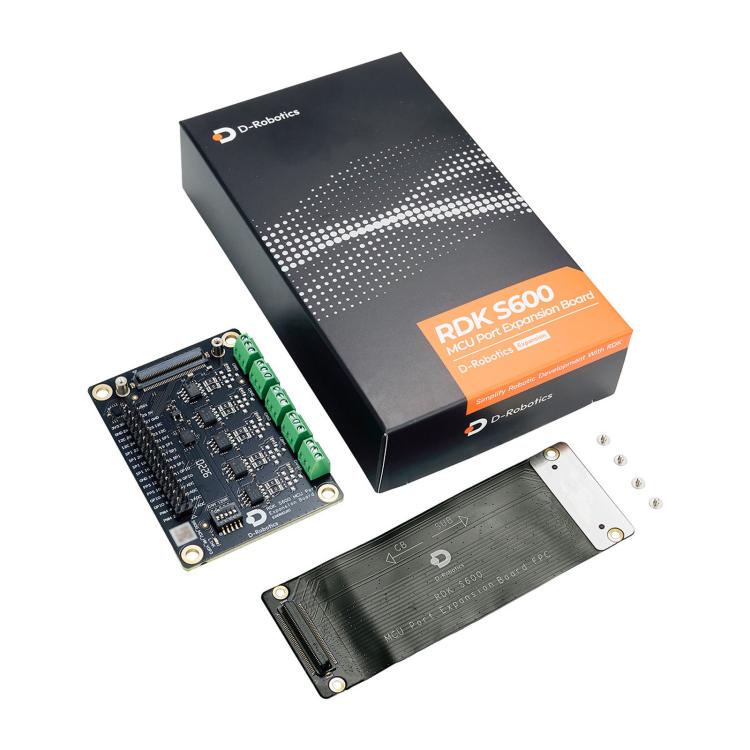

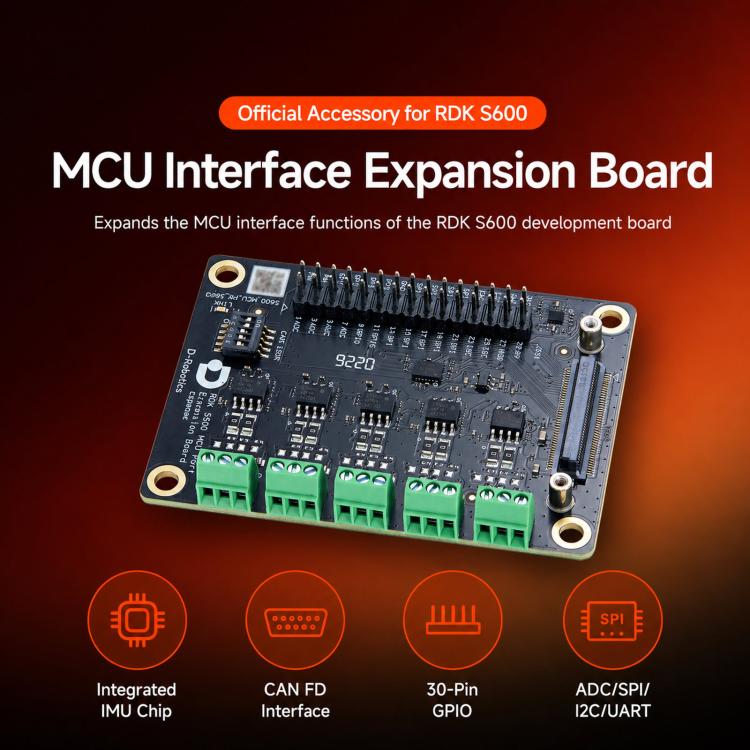

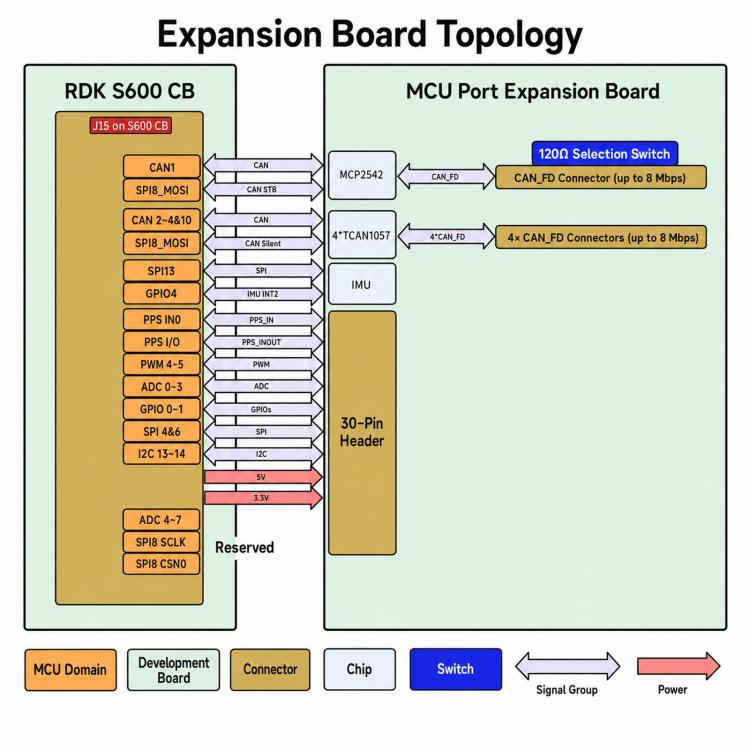

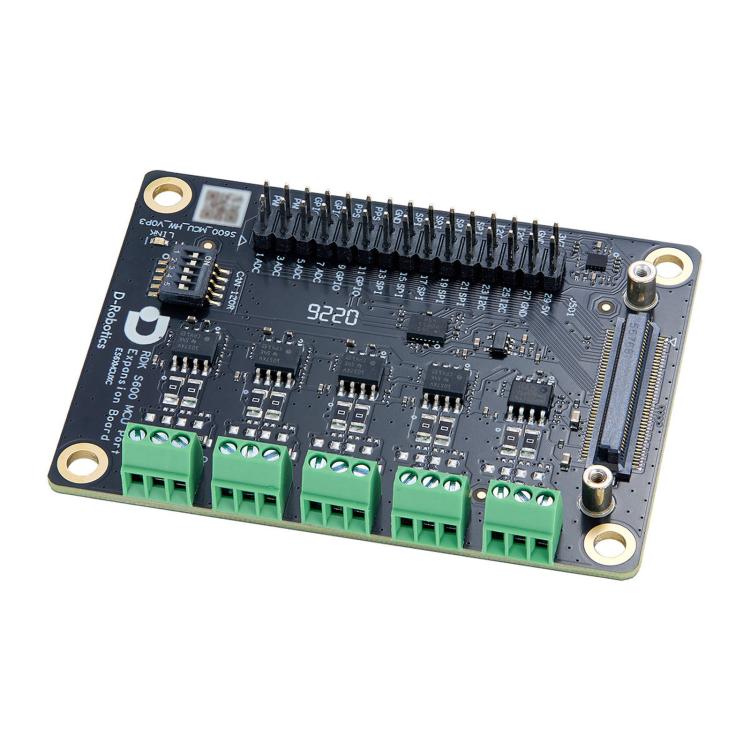

1. The RDK S600 MCU Port Expansion Board (includes matching FPC ribbon cable) is a core expansion module for the D-Robotics RDK S600 series developer kit. It is primarily designed to expand MCU interface functionalities, supporting CAN FD, ADC, and more.

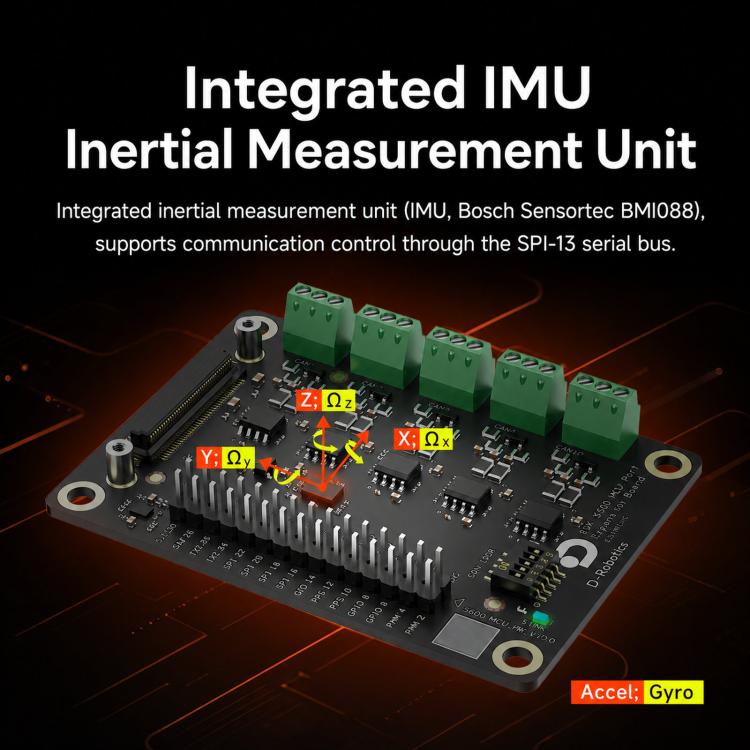

2. Integrated Inertial Measurement Unit (IMU, model Bosch Sensortec BMI088) supports communication and control via the high-speed SPI-13 serial bus.

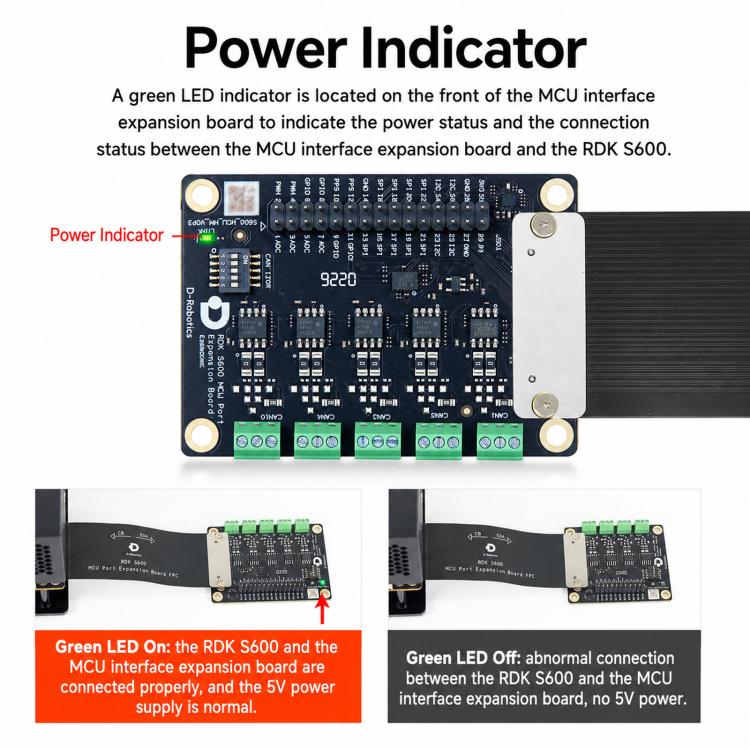

3. Power Indicator: The front side of the MCU expansion board features 1 green LED indicator to show the power status and the connection state between the MCU expansion board and the RDK S600 mainboard.

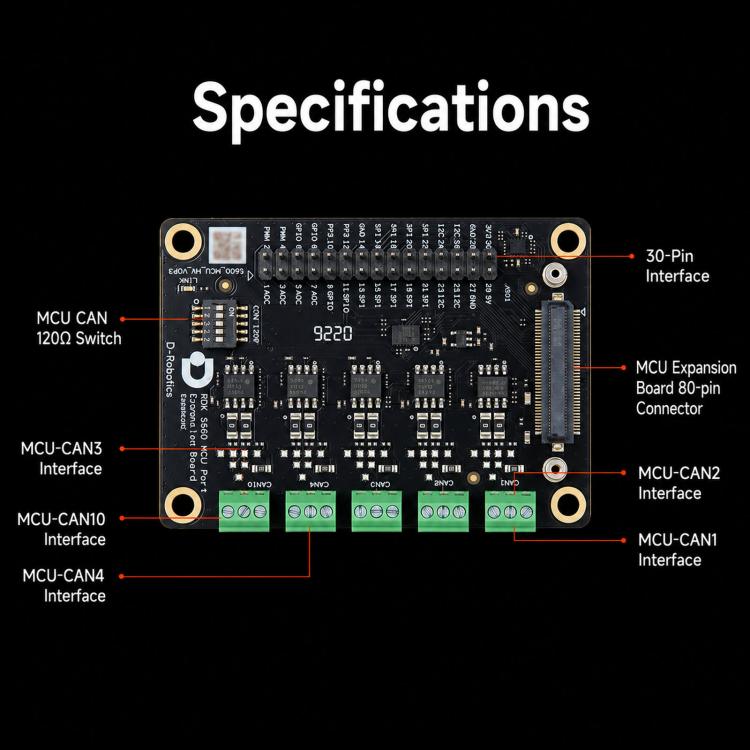

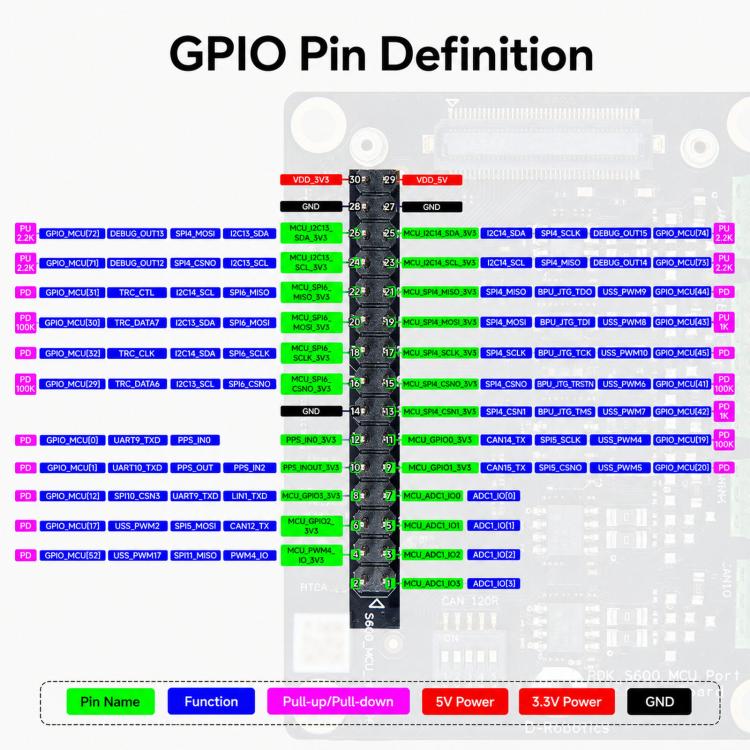

4. Interfaces: 5 x CAN FD (up to 8 Mbps), 1 x 30-pin header exposing up to 7 x ADC, 2 x I2C, 2 x SPI, and 1 x UART.
5. Onboard Module: IMU: Bosch BMI088 (SPI)
6. Operating Temperature: 0 to 65 degrees Celsius
7. Product Dimensions: 50 mm x 70 mm x 12 mm
8. Product Weight: 21.4 g
