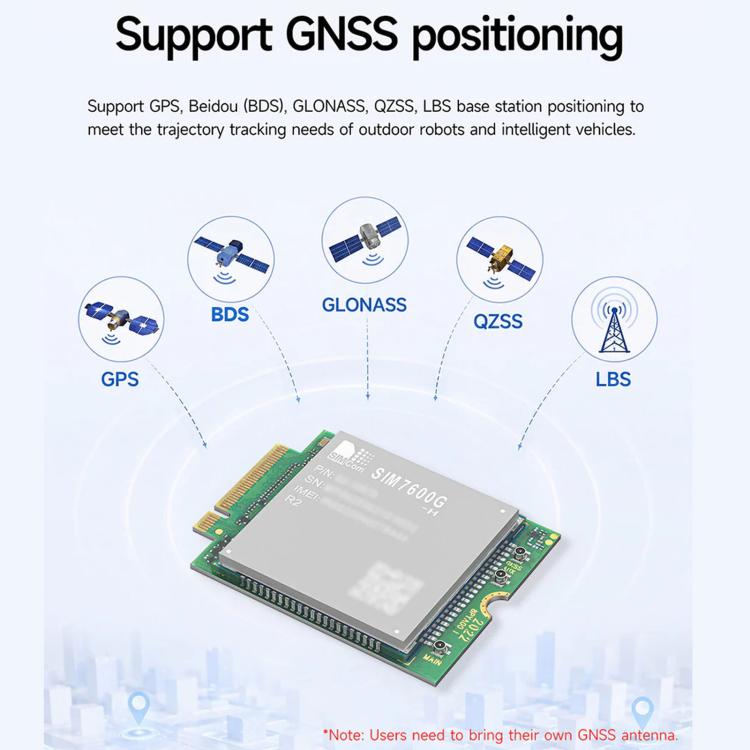

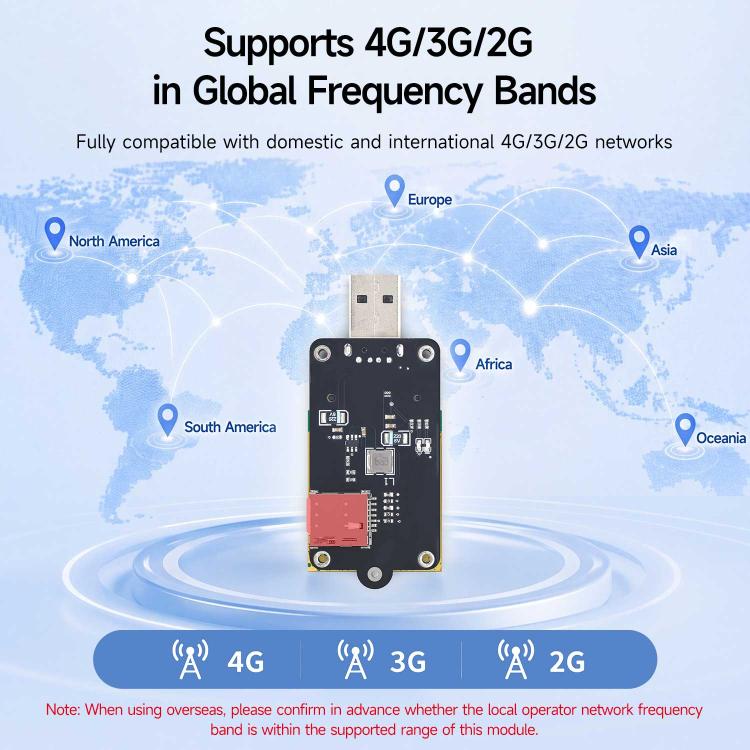

1. Powered by the highly stable SIM7600G-H-M2 core chip, this module supports the mainstream cellular network bands of most countries worldwide (backward compatible with 3G/2G). Utilizing LTE Cat 4 technology, it delivers downlink speeds up to 150 Mbps, supporting remote device management, real-time video transmission, and cloud connectivity. Its integrated GNSS positioning function (requires an external GNSS antenna) further extends its capabilities in navigation, tracking, and smart mobile applications.

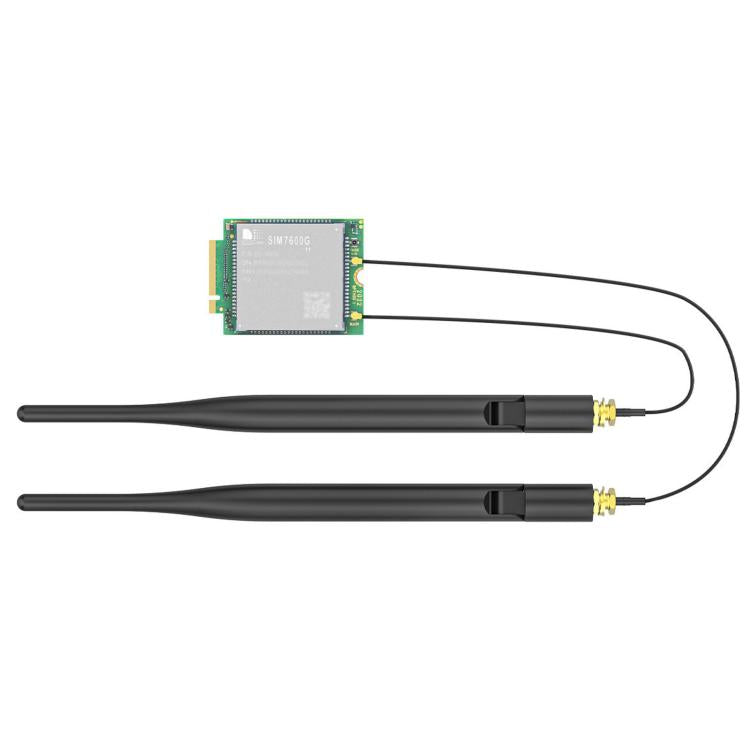

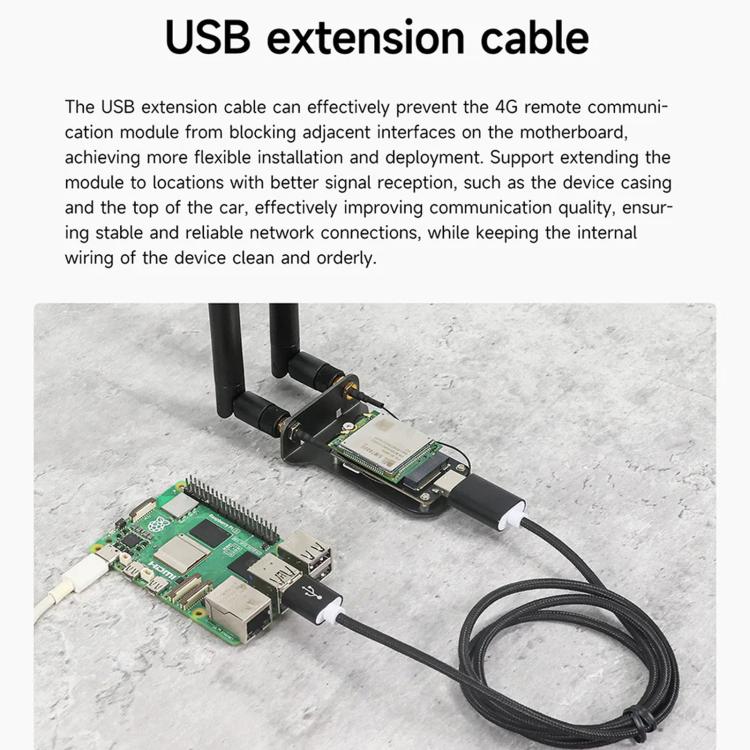

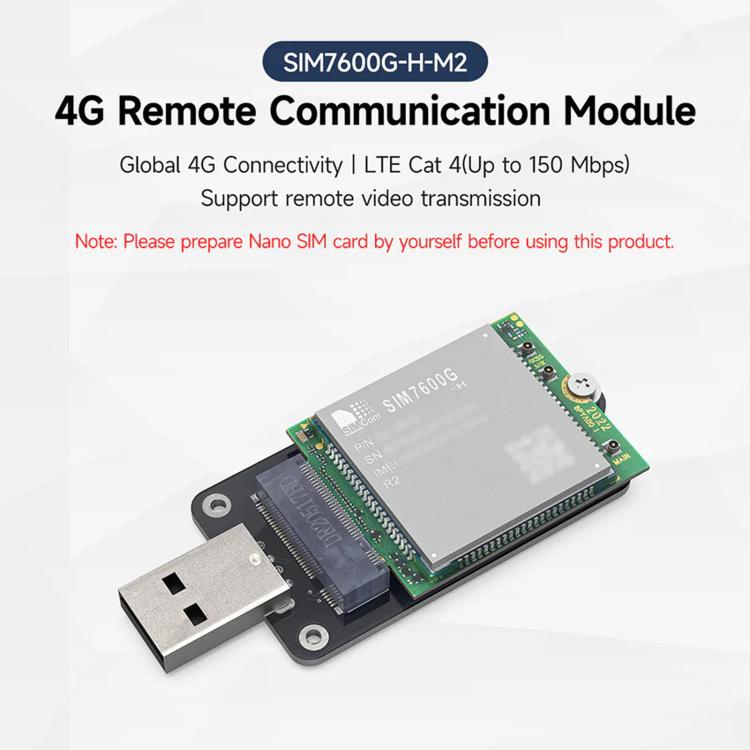

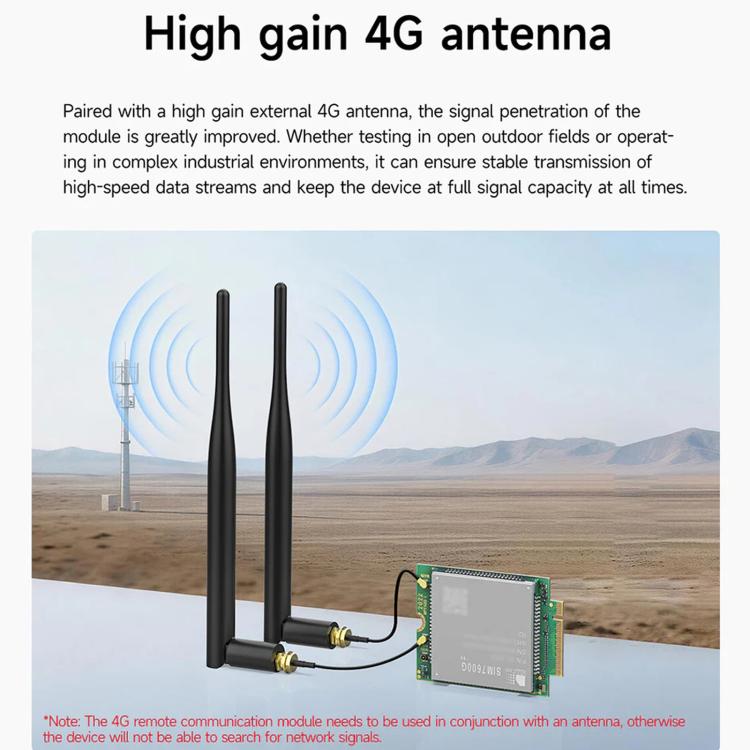

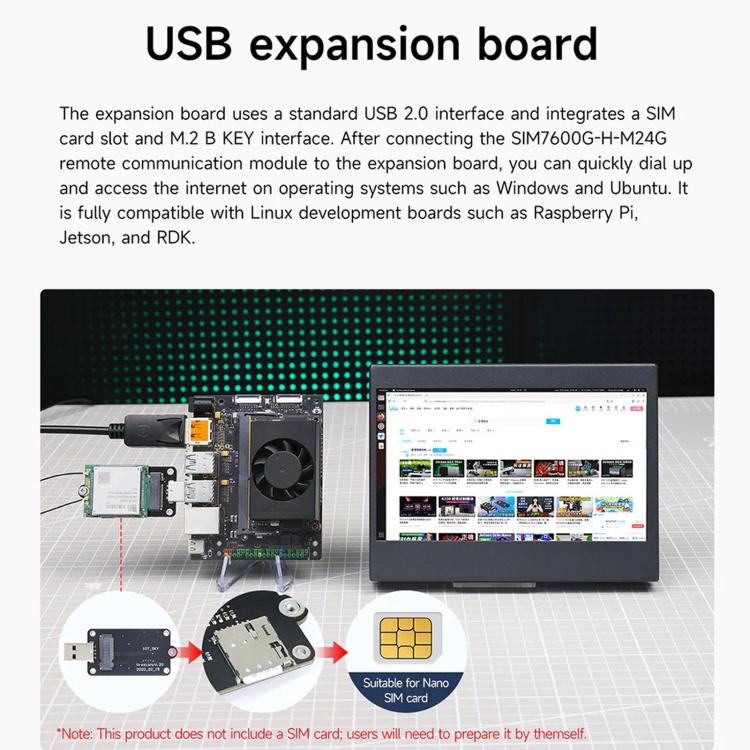

2. We provide four tiered configurations to match various development stages: if your motherboard already has an integrated slot, you can choose the "Standard Module"; if you need to boost the signal, choose the "Module + Dual Antennas Edition"; for single-board computers like Raspberry Pi that lack an M.2 slot, choose the "Driver-free USB Adapter Board Kit"; for outdoor unmanned equipment, we highly recommend the "Ultimate Robot Edition," which comes equipped with an aluminum alloy anti-vibration chassis and a 1 m shielded cable.
3. Standard M.2 B-KEY interface with strong compatibility.
4. Important Note: Please prepare a Nano SIM card yourself before using this product.
Specifications
Operating Frequency Bands:
--LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
--LTE-TDD: B34, B38, B39, B40, B41
--UMTS/HSPA+: B1, B2, B4, B5, B6, B8, B19
--GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
--GNSS: GPS, BeiDou, GLONASS, Galileo, QZSS
Data Transmission:
--LTE: 150 Mbps (DL) / 50 Mbps (UL)
--HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
--UMTS: 384 Kbps (DL) / 384 Kbps (UL)
--EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
--GPRS: 85.6 Kbps (DL) / 85.6 Kbps (UL)
Software Functions:

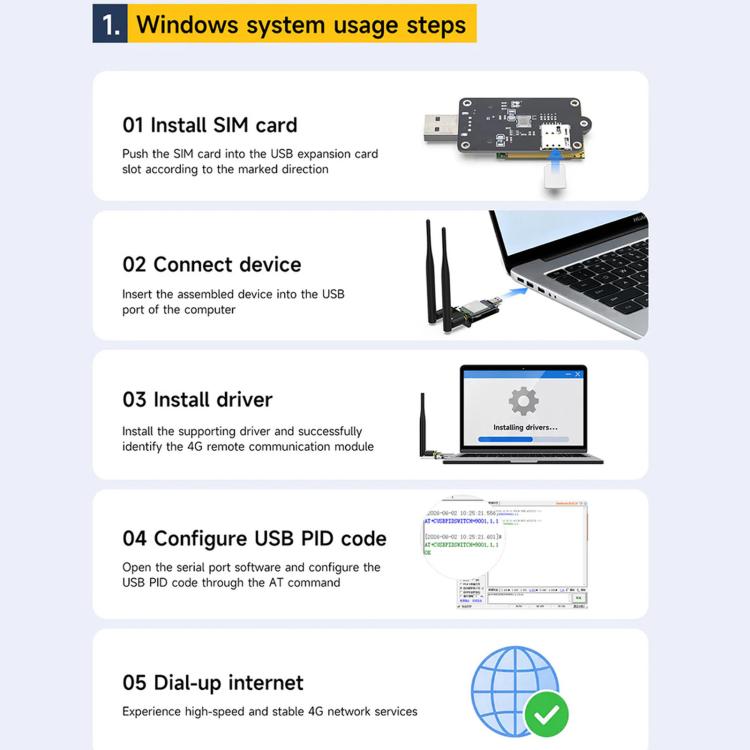

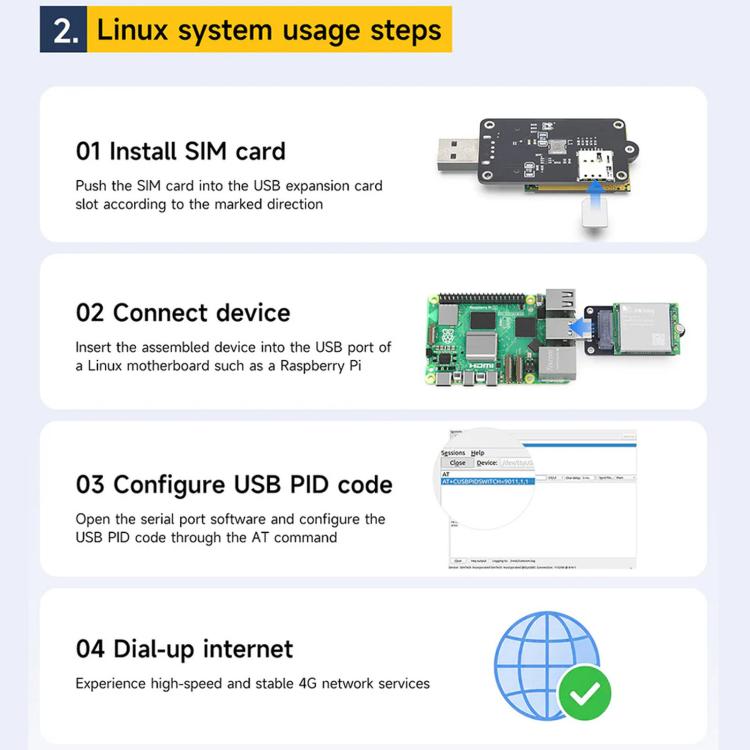

--Operating Systems: Windows / Linux / Android

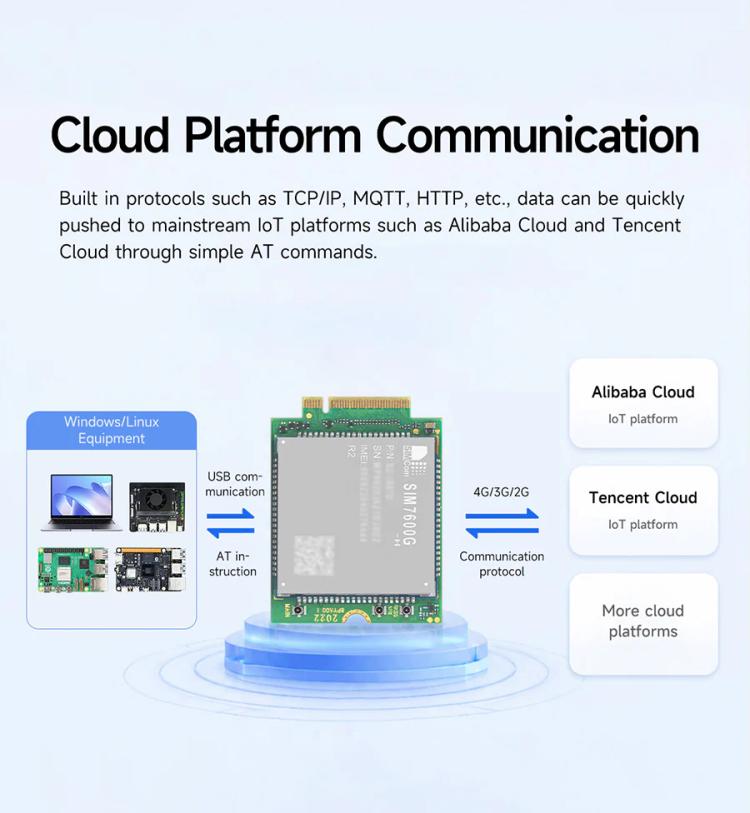

--Communication Protocols: TCP, IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
--SMS: Supports MT, MO, CB, Text, PDU
--Firmware Upgrade: Supports firmware upgrades via USB/FOTA interfaces
Hardware Description:
--SIM Card: 1.8 V / 3.0 V
--Antenna Interface: Generation 4 IPEX connectors (LTE Main Antenna + LTE Diversity Antenna + GNSS Antenna)
--Power Supply Voltage: 3.4 V - 4.2 V

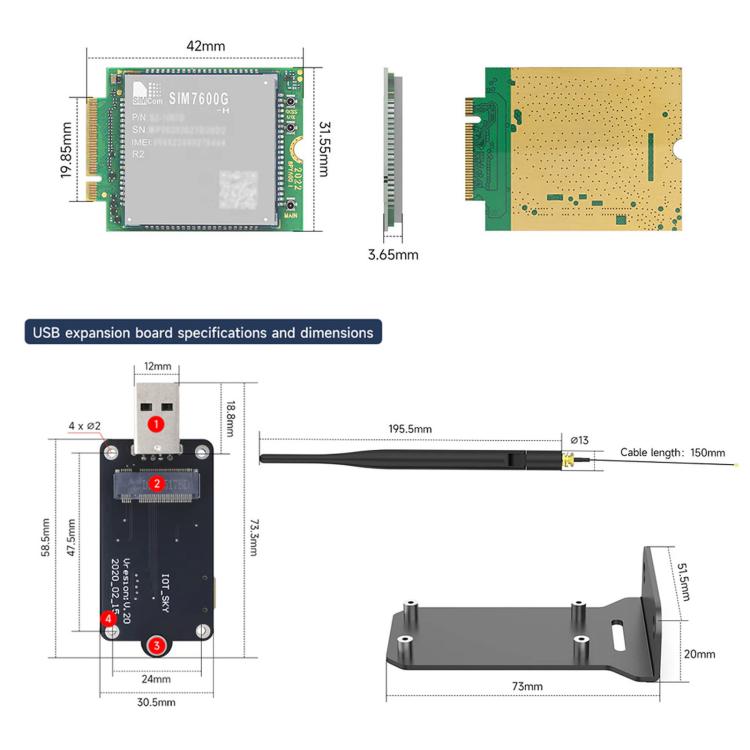

--Form Factor / Package: M.2 B-KEY
--Product Dimensions: 42 x 31.55 x 3.65 mm
