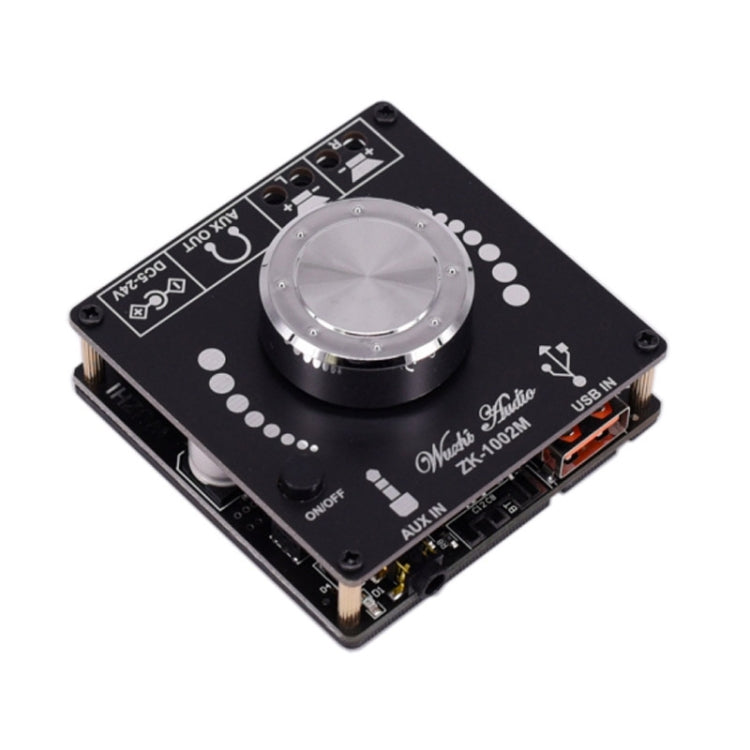

ZK-1002M Mini Stereo Bluetooth Audio Receiver D Class Digital Power Plate Module

Regular price
R 342.03
Sale price
R 342.03
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.


1. Audio source input: Bluetooth + AUX + U disk + computer USB (plug and play)
2. Adapter power supply: DC5-24V (high voltage is recommended for high power)
3. Output power: 100Wx2
4. Adapted speakers: 20-200W, 4-8 ohms
5. Number of channels: Left and right dual channels (stereo)
6. Bluetooth version: 5.0
7. Transmission distance: More than 15 meters, no obstruction
8. Bluetooth name: Wuzhi Audio
9. Protection mechanism: overheating, overcurrent, short circuit protection
10. Power supply voltage:
- 12V: 8 ohms/20W+20W, 4 ohms/40W+40W
- 15V: 8 ohms/35W+35W, 4 ohms/60W+60W
- 19V: 8 ohms/55W+55W, 4 ohms/80W+80W
- 24V: 8 ohms/70W+70W, 4 ohms/100W+100W

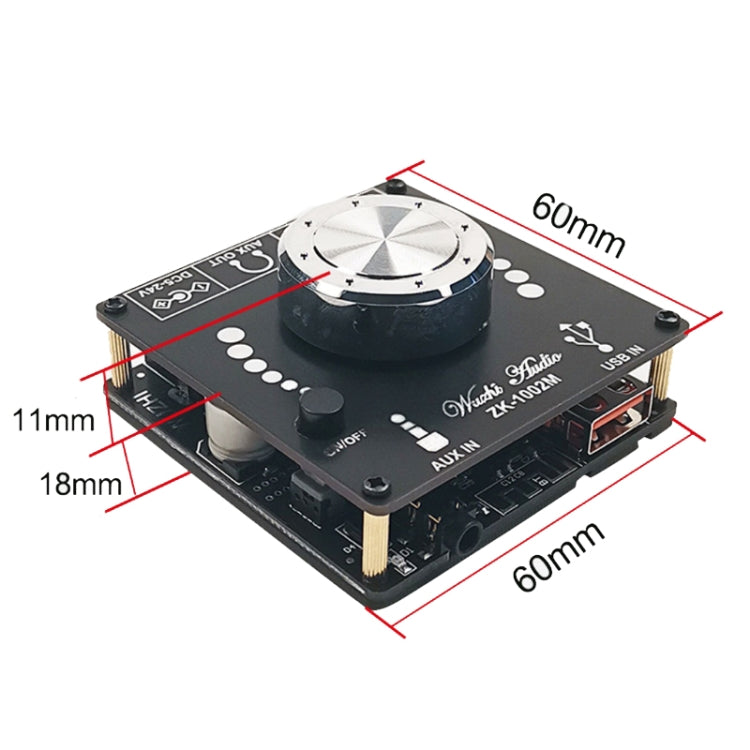

11. Size: About 6x6x2.9 cm
12. Weight: About 66g
13. Reminder: There will be enough output power only when the audio input is enough and the power supply/current is enough. the higher the power supply voltage, the higher the relative power, and speakers with different impedances will have different output powers. in the case of sufficient voltage and current, the larger the horn ohms, the smaller the relative sound power
