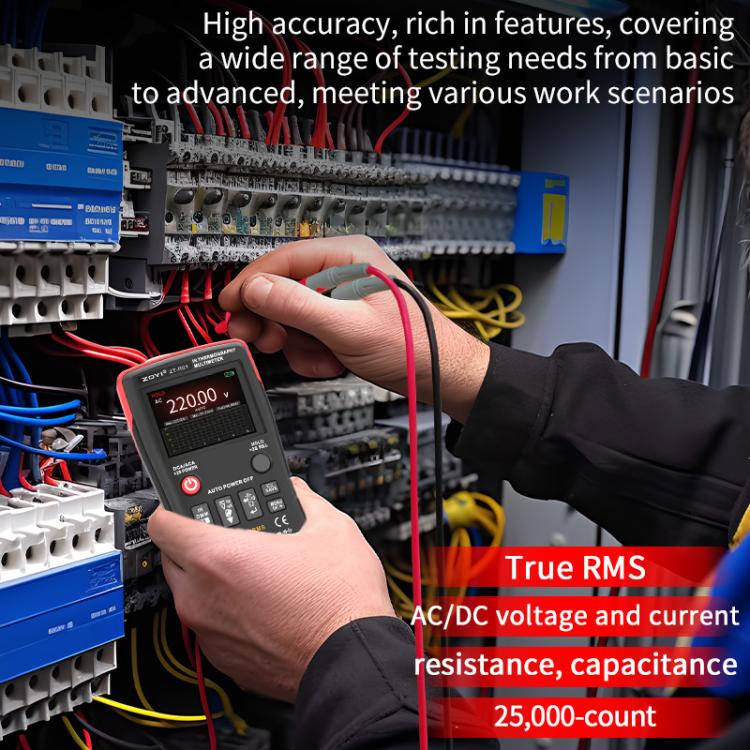

1. High accuracy, rich functions, covering various testing requirements from basic to advanced, meeting various working scenarios

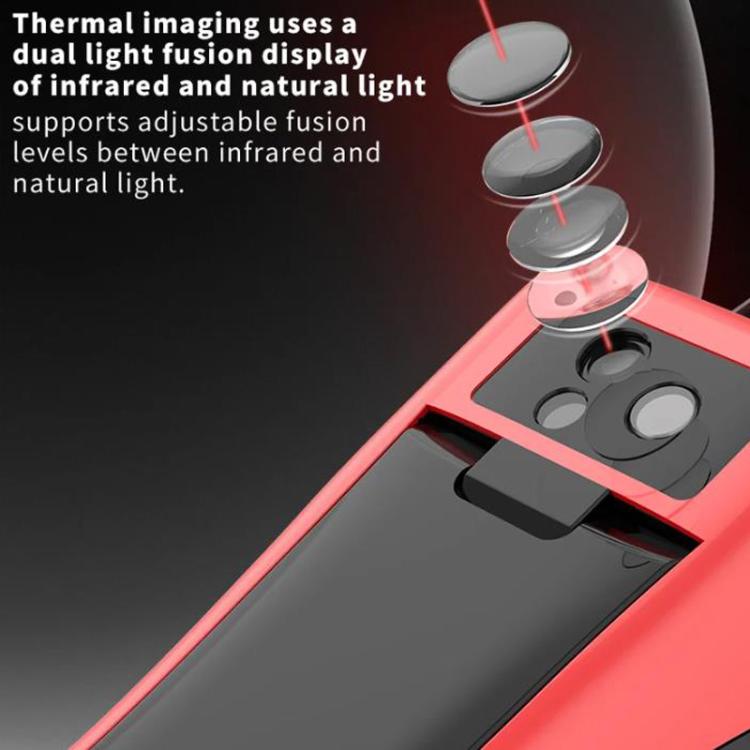

2. Thermal imaging uses dual light fusion display of infrared light and natural light, and supports adjustable fusion degree of infrared light and natural light

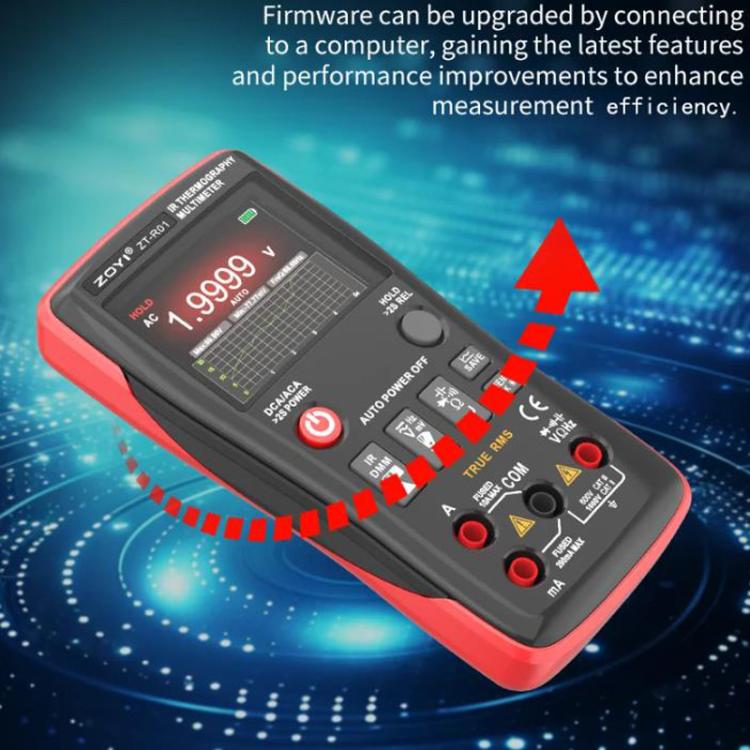

3. It can be upgraded through connecting to the computer firmware to obtain the latest functions and performance improvements, enhancing measurement efficiency

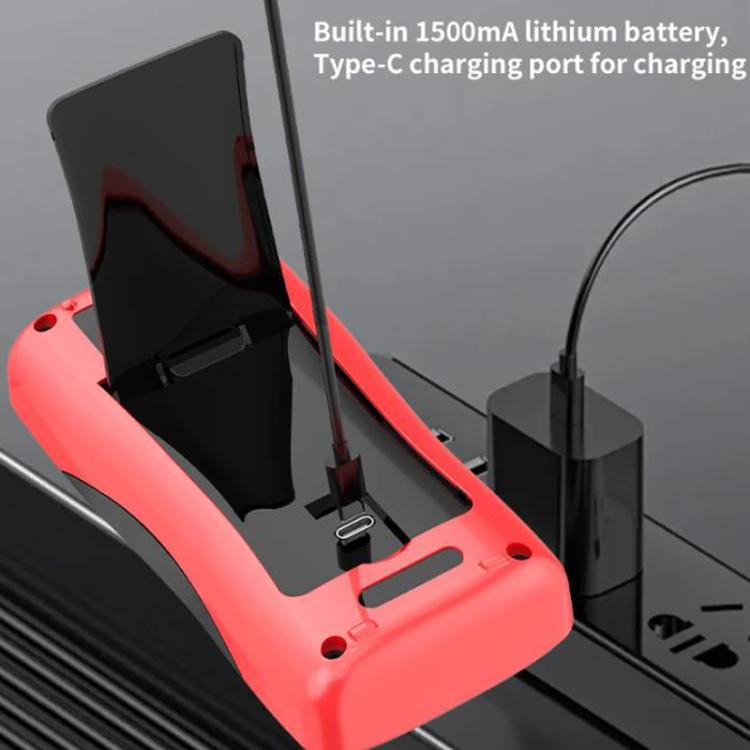

4. It is equipped with a 1500mA lithium battery and has a Type-C charging port for charging. One charge, long-lasting battery life

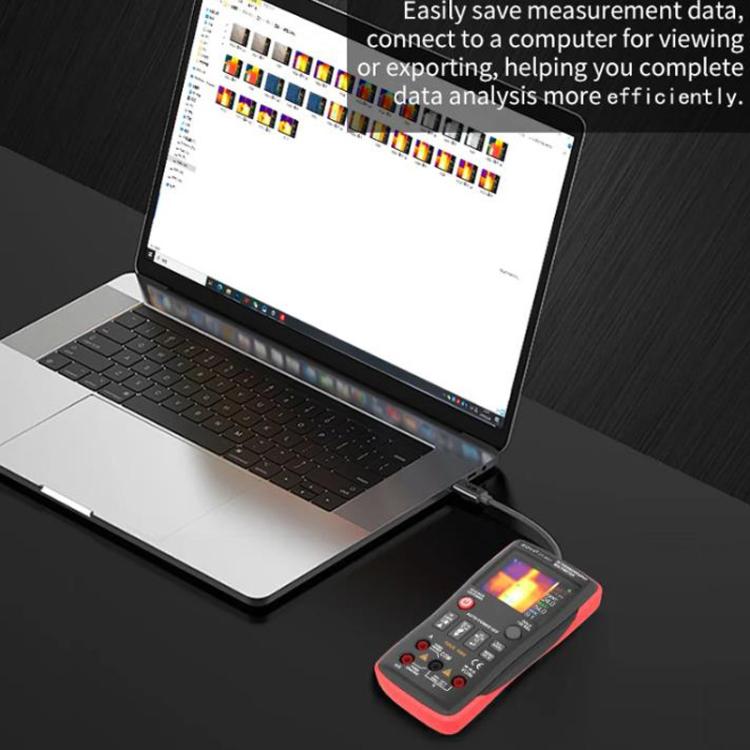

5. The data storage function is powerful. It can easily save measurement data, connect to a computer for viewing or export, helping you complete data analysis more efficiently

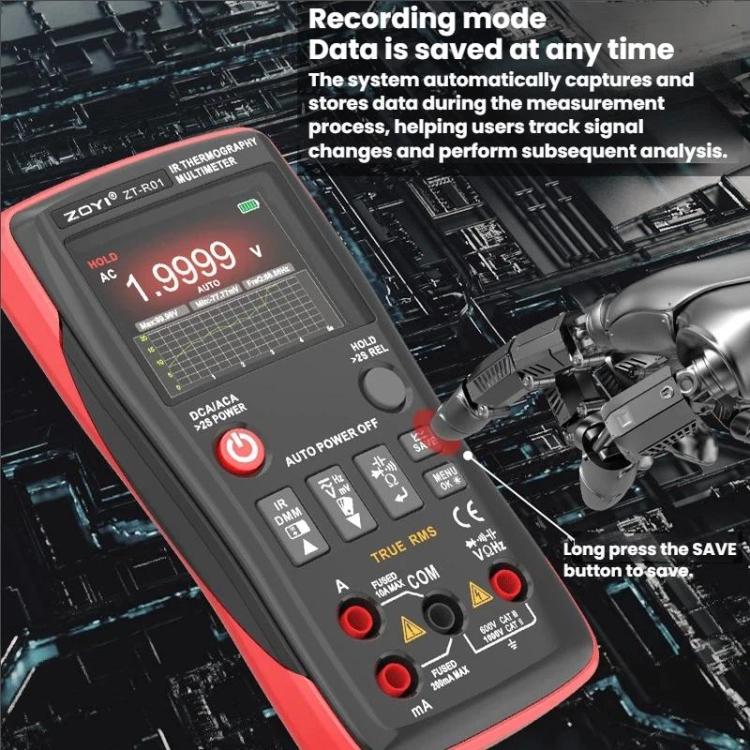

6. Recording mode: data is saved at any time. During the measurement process, data is automatically captured and stored, helping users track signal changes and conduct subsequent analysis

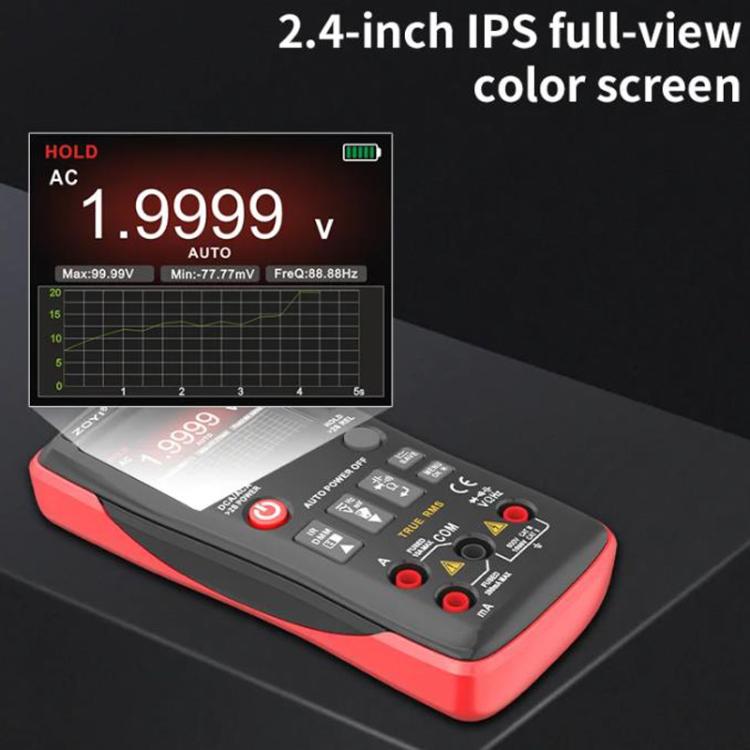

7. A 2.4-inch IPS full-view color screen with high-definition display, allowing for easy reading of each measurement data and avoiding errors

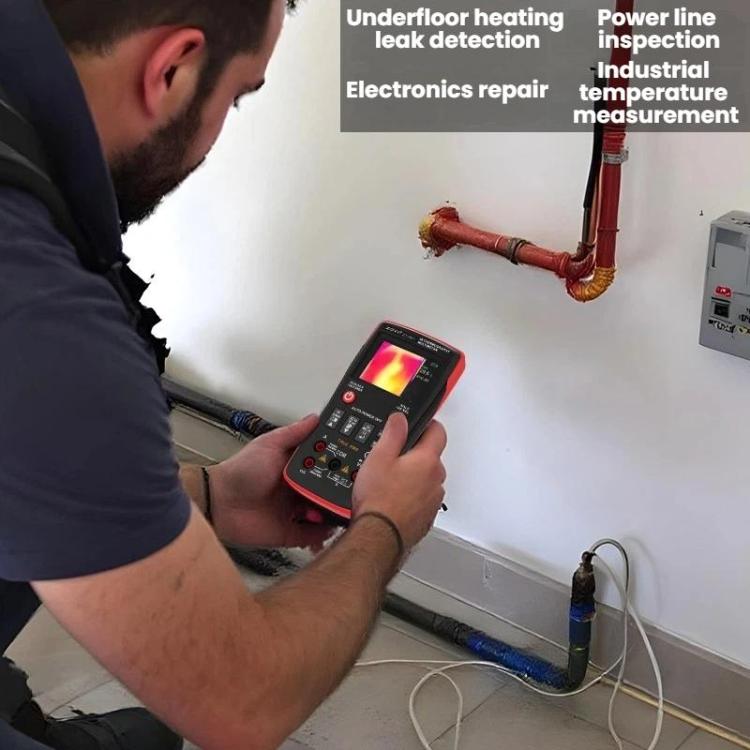

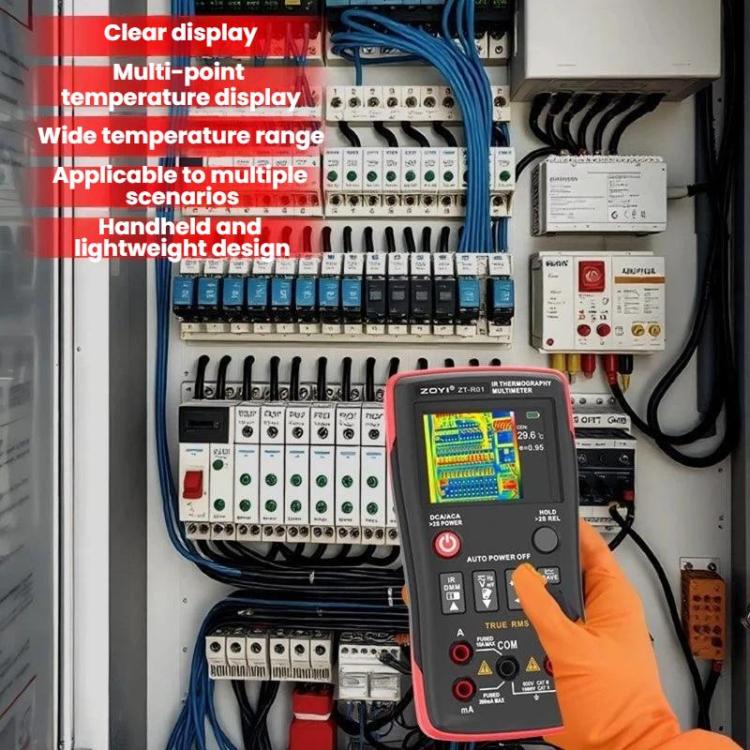

8. It has a wide range of application scenarios, including floor heating leak detection, power inspection, electronic maintenance, industrial temperature measurement, etc
Thermal imaging parameters
1. Screen: 2.4-inch IPS full-view color screen
2. Resolution: infrared 32 x 32 points, visible light 240 x 240
3. Field of View (FOV): 33° (H) x 33° (V)
4. Emissivity: 0.10 - 1.00
5. Color palette: 4 types
6. Temperature measurement range: 0.3 - 2m
7. Image focal length: fixed focal length
8. Infrared wavelength range: 8 - 14um
9. Temperature measurement range: -20 - 550℃
10. Temperature measurement accuracy: measured target temperature ±2℃ or 2%
11. Effective temperature measurement distance: less than or equal to 2m
12. Power supply: 3.6 - 4.2V
13. Charging: Type-C
14. Battery capacity: 1500mAh
